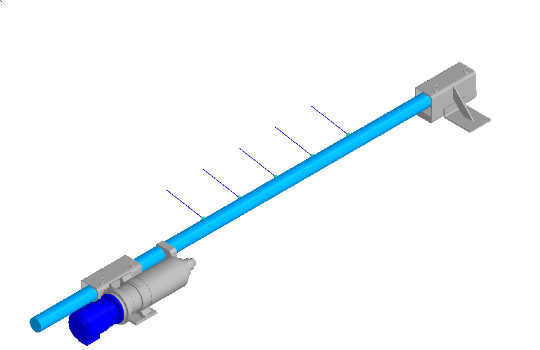

|SHOWER OSCILLATOR "SL-3B SERIES"|
|1. Original spherical bearing support system|
The oscillate body is protected from abnormal load by the spherical bearing support, and it makes automatic adjustment.
This device prevents abnormal load on the direct drive unit from shower pipe strain, vibration, and changes in the installation points. This eliminates oscillator breakdown and greatly increases service life.
2. Designed to save energy and space
Due to its superior low friction mechanism, enables use of the high performance low output small scale motor. Compared with conventional oscillators, the miniaturization and light weight of this device permit installation in very small spaces, as a real energy saving space saver.
3. Easy alignment to shower pipes
Optional choice is possible from among the 4 directions (up, down, left, right) for installation of the shower pipe to the oscillate. The shower pipe can be installed only by loosening one screw.
4. Completely sealed lubrication for the drive unit
Oil bath lubrication system used for the drive unit, to prevent oil leakage at oil seals. Superior wear resistance of the ceramic coating at the oscillate rod surface holds down rod wear.
Also, a stainless cover over the rod prevents external water and dust from adhering to the rod surface.
This assures complete reliability.

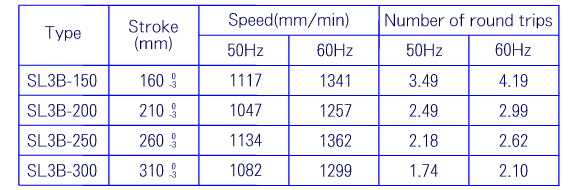

Using the gear motor of 0.1kw x 4P and reduction gear ratio 1/43.
|★Catalog(Please click the image)★|
(PDF File 330KB)
